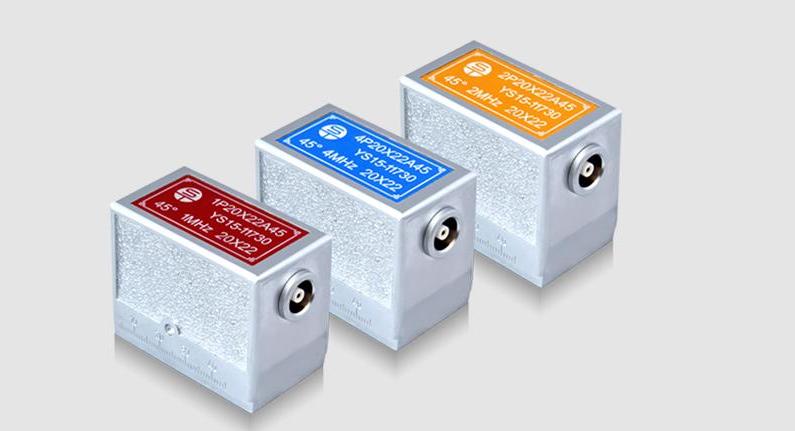

Réamhrá Ginearálta
Baintear úsáid go forleathan as Taiscéalaí Bíomaí Uillinn Trasnacha Tonn YUSHI chun lochtanna a bhrath nó a iniúchadh táthúcháin, mar scoilteanna, poill agus phiocháin. Léirítear an trastonn ansin ag lochtanna an réad tástála. I gcomparáid le tonnta fadaimseartha, tá tanú níos ísle agus tonnfhad níos giorra ag tonnta lomadh, rud a fhágann go bhfuil siad in ann lochtanna níos lú a bhrath.
Prionsabal Oibriúcháin
Is éard atá sa tóireadóir oblique tonn lomadh ná braite trasnánach, arb é an tóireadóir é a bhfuil uillinn teagmhais idir an chéad uillinn chriticiúil agus an dara uillinn chriticiúil agus is tonn lomadh íon é an tonn athraonta, a úsáidtear go príomha chun lochtanna a bhrath ingearach leis an bhrath. dromchla nó ag uillinn áirithe, agus úsáidtear go forleathan é chun welds, píopaí agus gaibhneachta a bhrath
Cén fáth a bhfuil an Tranverse Wave Probe YUSHI níos íogaire?
● Glacadh le sliseoga piezoelectric déanta as ábhair chomhchodacha

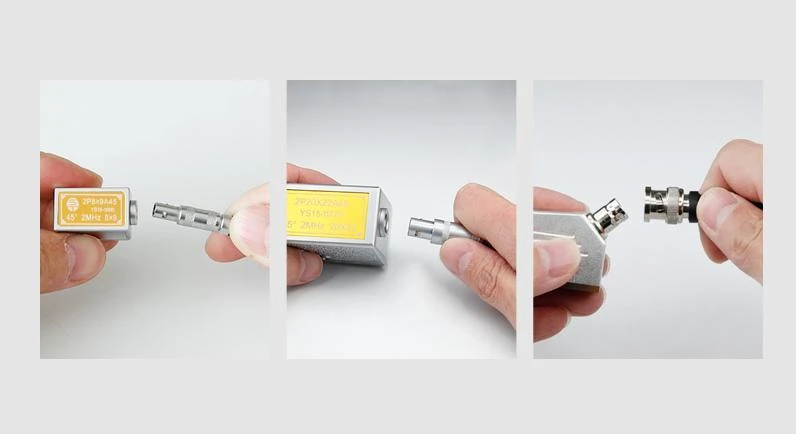

● Cónascaire selectable
● Próiseas ocsaídiúcháin anodic dromchla

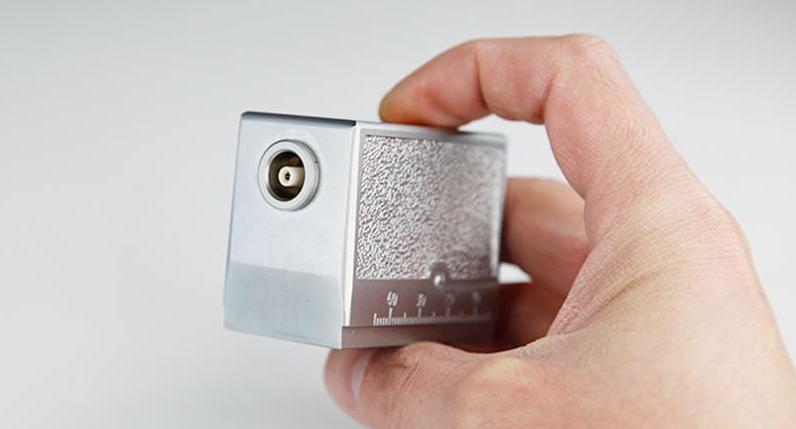

● PMMA-Wearable Probe Wedge
Feidhmiú Tóraithe Tras-thonnta
Scoilteanna táthú ginearálta Cigireacht
Píblíne, soithí brú
Acastóra, réitigh, brionnú
Rothaí agus ráillí iarnróid
Caidéil, sleeves comhla
Lanna tuirbín
Sonraíocht Tóraithe
|
Múnla |
Minicíocht |
Méid na heiliminte |
Uillinn athraonta |
In aice le fad na páirce |
||
|
MHz |
Mm. |
I. |
Cruach |
mm |
isteach |
|
|
2.5P13x13K1 |
2.5 |
13x13 |
.51x.51 |
45 céim |
44 |
1.7 |
|
2.5P13x13K1.5 |
2.5 |
13x13 |
.51x.51 |
56.3 céim |
44 |
1.7 |
|
2.5P13x13K2 |
2.5 |
13x13 |
.51x.51 |
63.4 céim |
44 |
1.7 |
|
2.5P13x13K2.5 |
2.5 |
13x13 |
.51x.51 |
68.2 céim |
44 |
1.7 |
|
2.5P13x13K3 |
2.5 |
13x13 |
.51x.51 |
71.6 céim |
44 |
1.7 |
|
5P13x13K1 |
5 |
13x13 |
.51x.51 |
45 céim |
88 |
3.5 |
|
5P13x13K1.5 |
5 |
13x13 |
.51x.51 |
56.3 céim |
88 |
3.5 |
|
5P13x13K2 |
5 |
13x13 |
.51x.51 |
63.4 céim |
88 |
3.5 |
|
5P13x13K2.5 |
5 |
13x13 |
.51x.51 |
68.2 céim |
88 |
3.5 |
|
5P13x13K3 |
5 |
13x13 |
.51x.51 |
71.6 céim |
88 |
3.5 |
|
2.5P10x16K1 |
2.5 |
10x16 |
.39x.63 |
45 céim |
42 |
1.7 |
|
2.5P10x16K1.5 |
2.5 |
10x16 |
.39x.63 |
56.3 céim |
42 |
1.7 |
|
2.5P10x16K2 |
2.5 |
10x16 |
.39x.63 |
63.4 céim |
42 |
1.7 |
|
2.5P10x16K2.5 |
2.5 |
10x16 |
.39x.63 |
68.2 céim |
42 |
1.7 |
|
2.5P10x16K3 |
2.5 |
10x16 |
.39x.63 |
71.6 céim |
42 |
1.7 |
|
5P10x16K1 |
5 |
10x16 |
.39x.63 |
45 céim |
84 |
3.3 |
|
5P10x16K1.5 |
5 |
10x16 |
.39x.63 |
56.3 céim |
84 |
3.3 |
|
5P10x16K2 |
5 |
10x16 |
.39x.63 |
63.4 céim |
84 |
3.3 |
|
5P10x16K2.5 |
5 |
10x16 |
.39x.63 |
68.2 céim |
84 |
3.3 |
|
5P10x16K3 |
5 |
10x16 |
.39x.63 |
71.6 céim |
84 |
3.3 |
|
2.5P9x9K1 |
2.5 |
9x9 |
.35x.35 |
45 céim |
21 |
0.8 |
|
2.5P9x9K1.5 |
2.5 |
9x9 |
.35x.35 |
56.3 céim |
21 |
0.8 |
|
2.5P9x9K2 |
2.5 |
9x9 |
.35x.35 |
63.4 céim |
21 |
0.8 |
|
2.5P9x9K2.5 |
2.5 |
9x9 |
.35x.35 |
68.2 céim |
21 |
0.8 |
|
2.5P9x9K3 |
2.5 |
9x9 |
.35x.35 |
71.6 céim |
21 |
0.8 |
|
5P9x9K1 |
5 |
9x9 |
.35x.35 |
45 céim |
42 |
1.7 |
|
5P9x9K1.5 |
5 |
9x9 |
.35x.35 |
56.3 céim |
42 |
1.7 |
|
5P9x9K2 |
5 |
9x9 |
.35x.35 |
63.4 céim |
42 |
1.7 |
|
5P9x9K2.5 |
5 |
9x9 |
.35x.35 |
68.2 céim |
42 |
1.7 |
|
5P9x9K3 |
5 |
9x9 |
.35x.35 |
71.6 céim |
42 |
1.7 |
|
2.5P8x12K1 |
2.5 |
8x12 |
.31x.47 |
45 céim |
25 |
1.0 |
|
2.5P8x12K1.5 |
2.5 |
8x12 |
.31x.47 |
56.3 céim |
25 |
1.0 |
|
2.5P8x12K2 |
2.5 |
8x12 |
.31x.47 |
63.4 céim |
25 |
1.0 |
|
2.5P8x12K2.5 |
2.5 |
8x12 |
.31x.47 |
68.2 céim |
25 |
1.0 |
|
2.5P8x12K3 |
2.5 |
8x12 |
.31x.47 |
71.6 céim |
25 |
1.0 |
|
5P8x12K1 |
5 |
8x12 |
.31x.47 |
45 céim |
50 |
2.0 |
|
5P8x12K1.5 |
5 |
8x12 |
.31x.47 |
56.3 céim |
50 |
2.0 |
|
5P8x12K2 |
5 |
8x12 |
.31x.47 |
63.4 céim |
50 |
2.0 |
|
5P8x12K2.5 |
5 |
8x12 |
.31x.47 |
68.2 céim |
50 |
2.0 |
|
5P8x12K3 |
5 |
8x12 |
.31x.47 |
71.6 céim |
50 |
2.0 |
